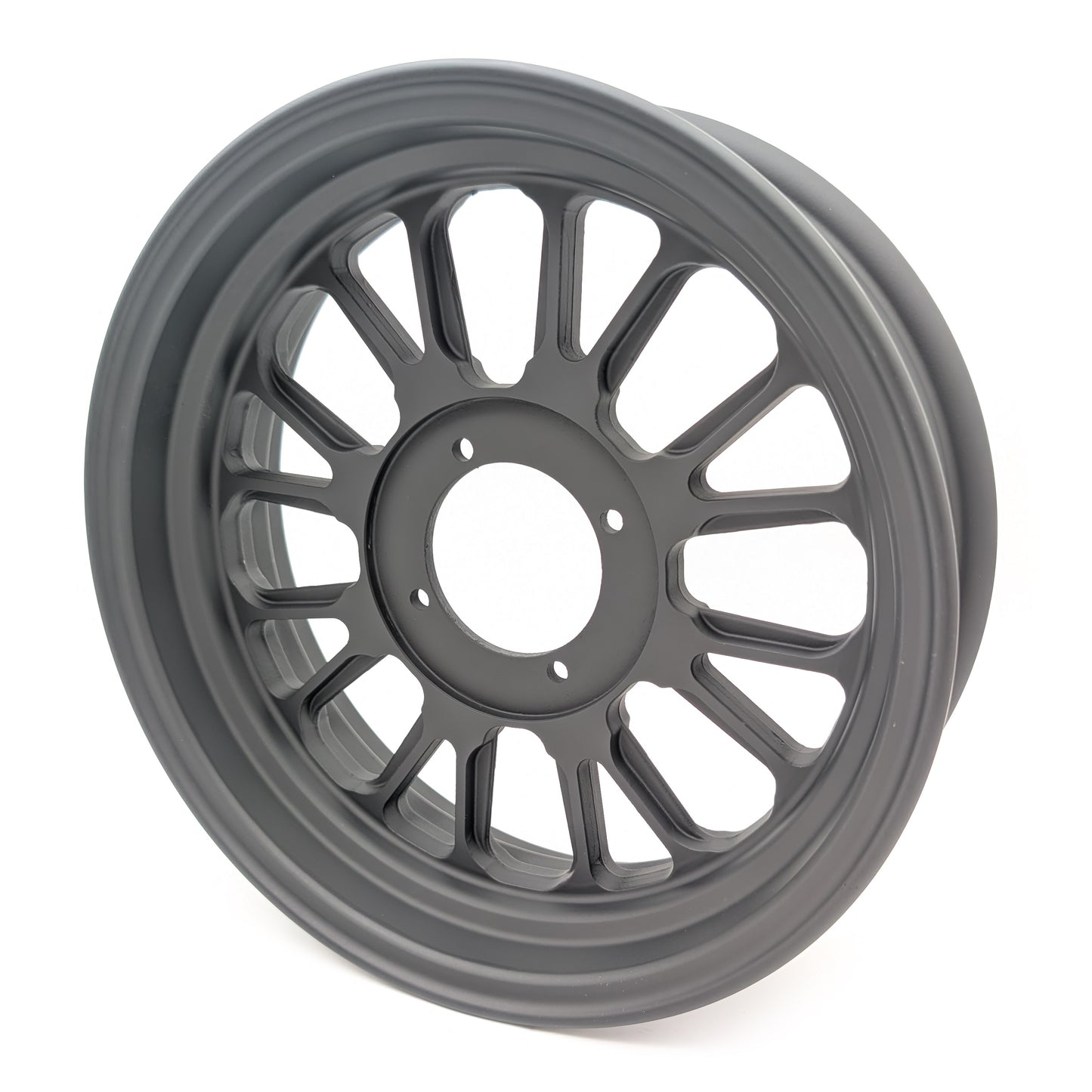

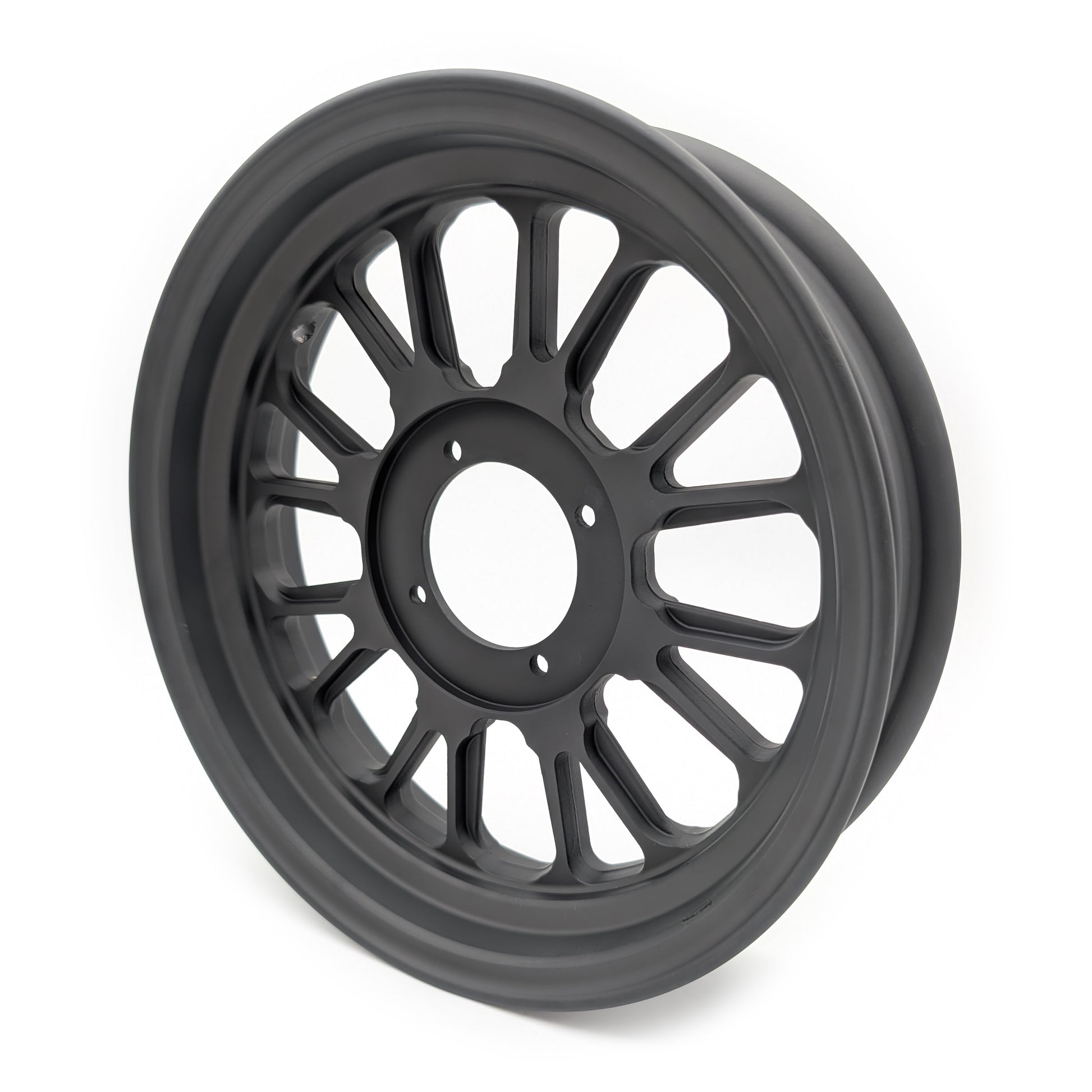

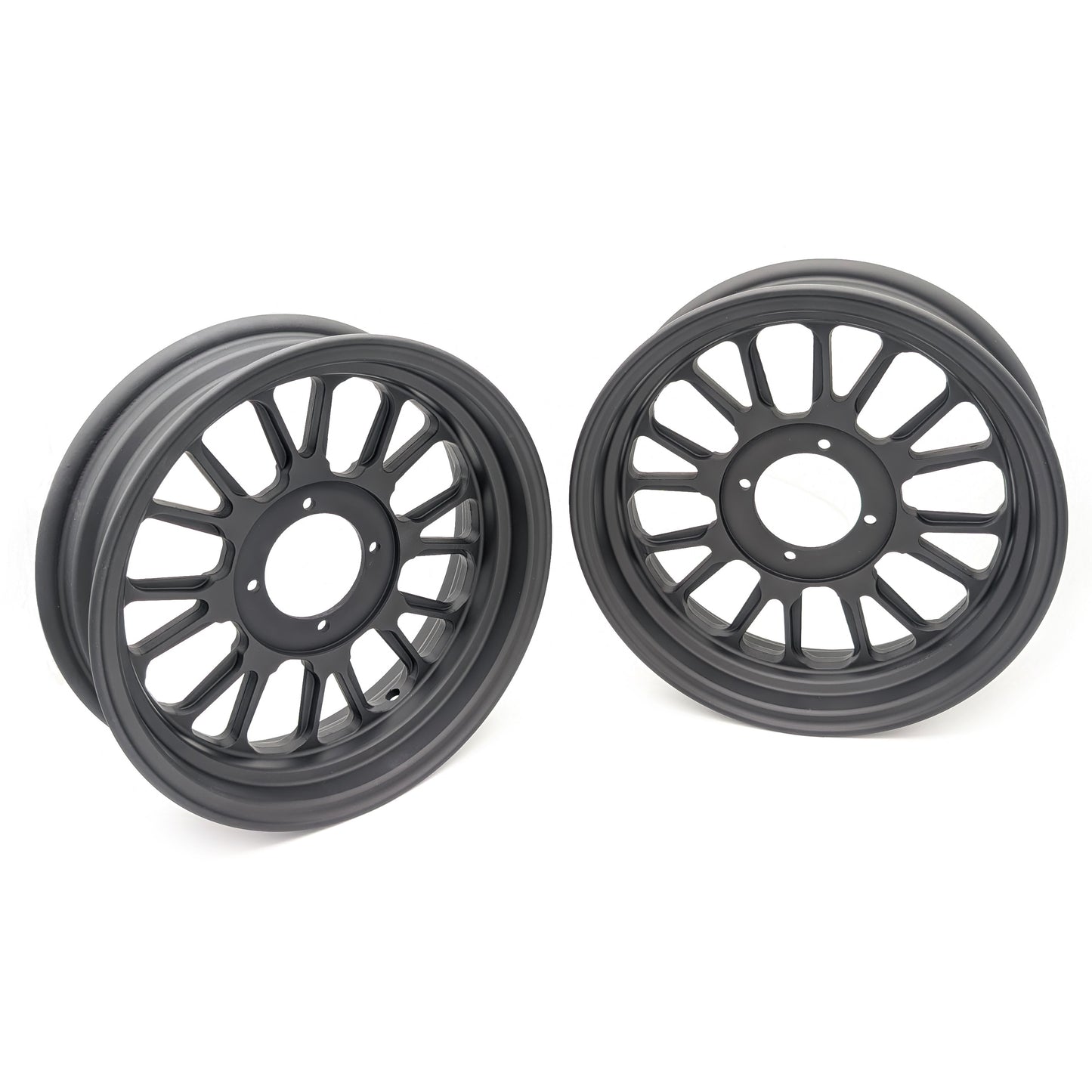

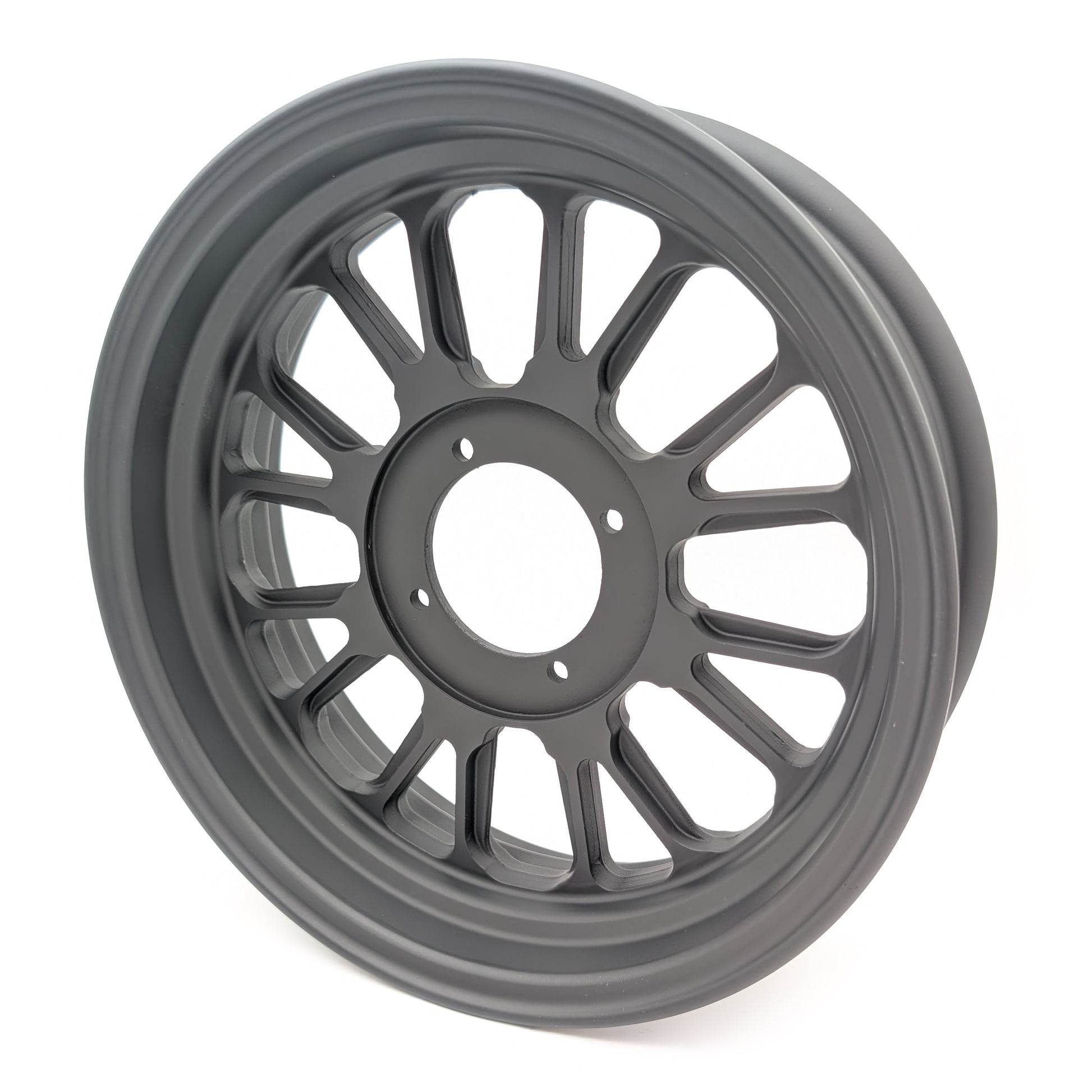

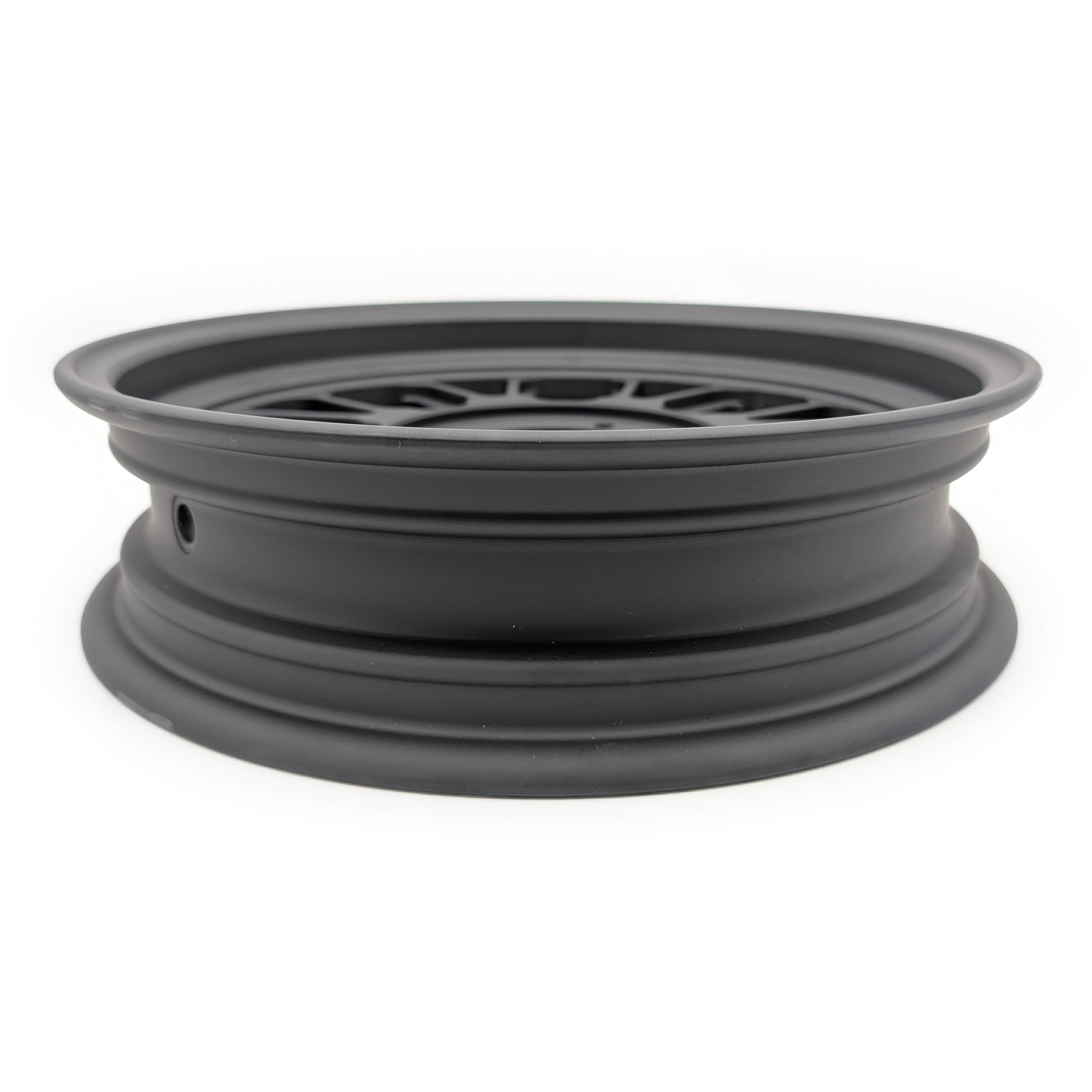

Set of 2 - Z-Type 12" X 3.5" Rear / 2.75" Front 16 Spoke 1 Piece Rim (Flat Black)

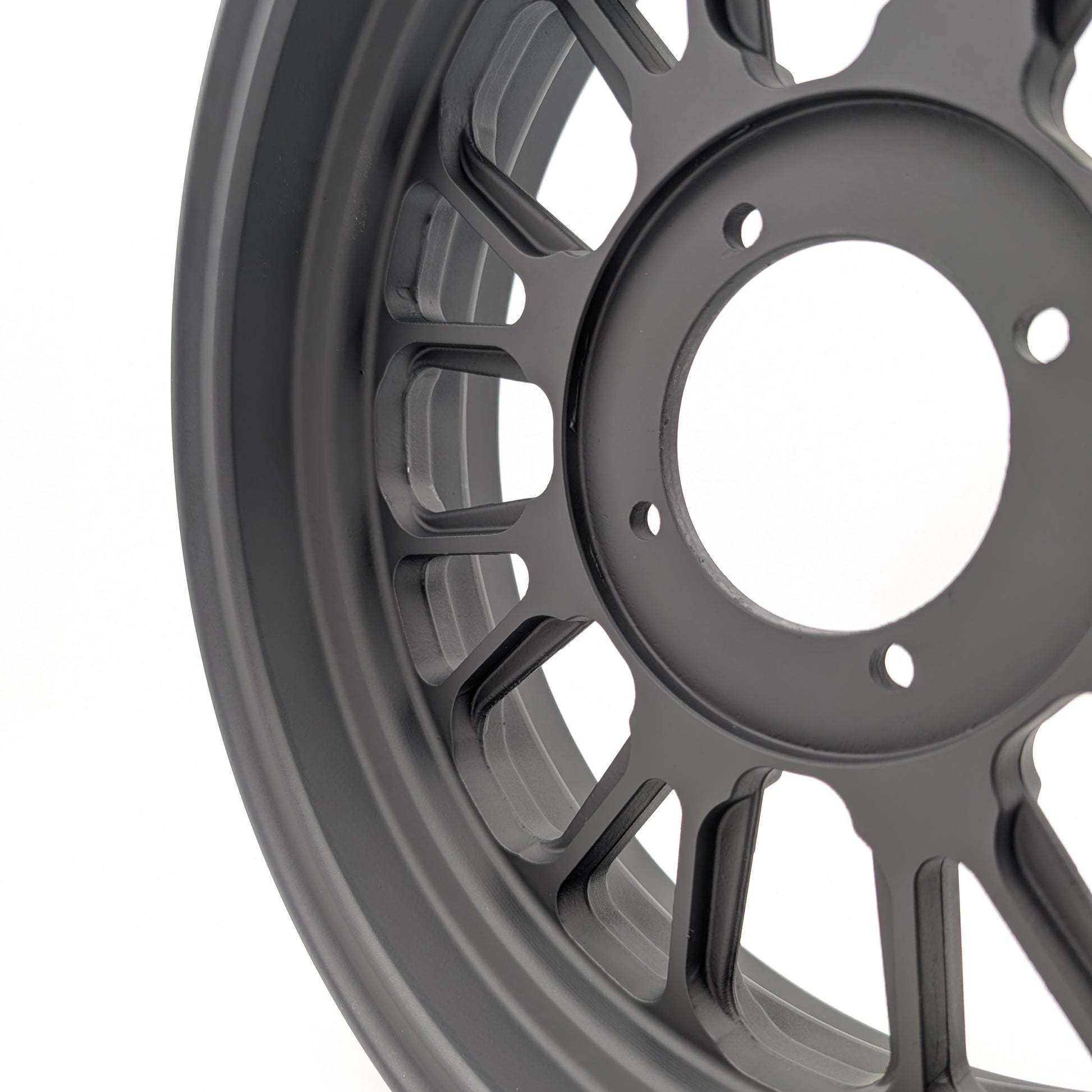

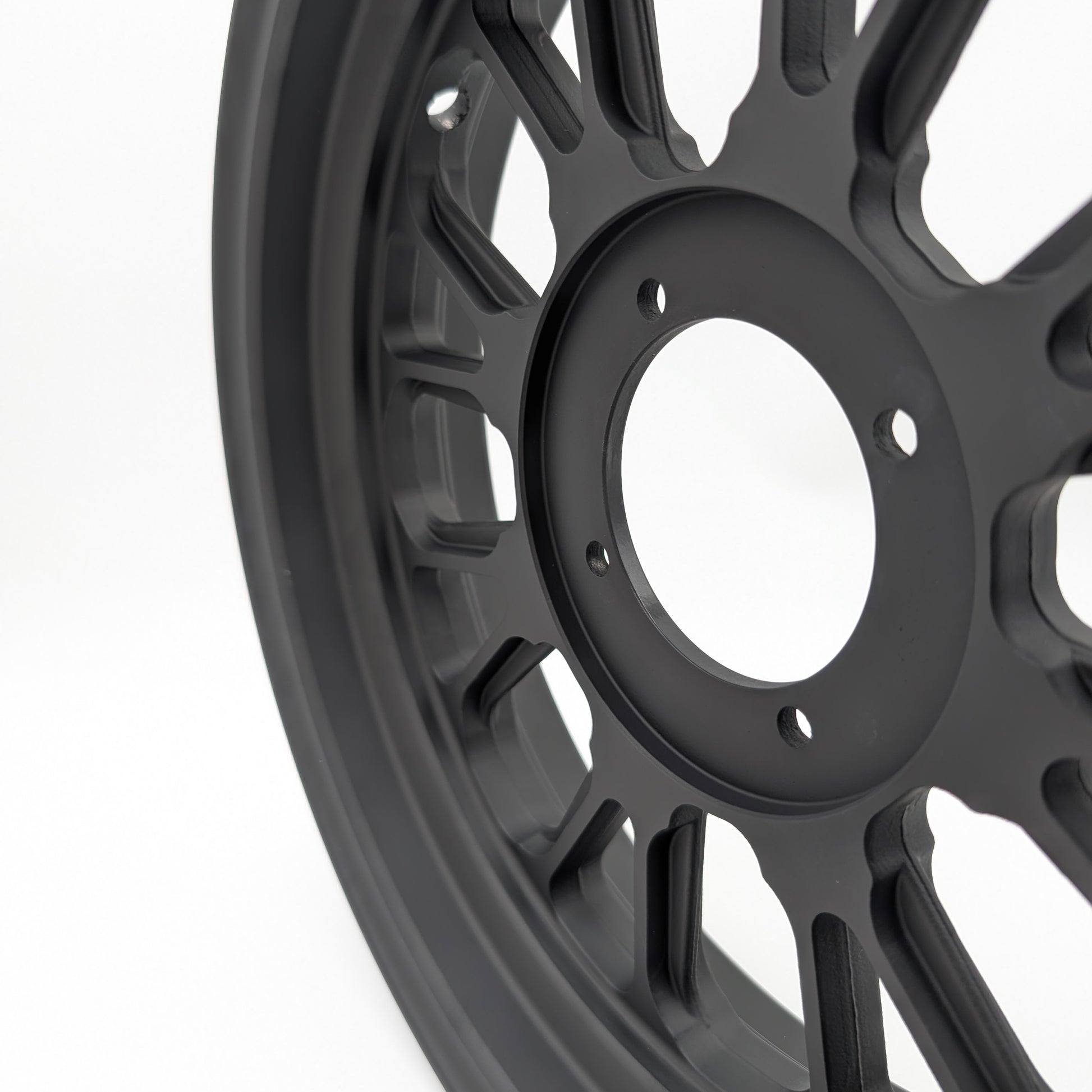

This wheel set uses the classic 4-bolt Z50 pattern, spaced 64 mm center-to-center (about 90 mm across) — commonly known as a 4×90 mm bolt pattern. This is the original pattern found on Honda Z50 models from K0–1979.

To run them on a CT70 you will need our CT70 Front & Rear Disc Kit or Z50 Conversion Hub Set seen below

Features

• 1 Piece Aluminum construction
• Powder coated flat black
• Bolts to 4 bolt Z50 type hub

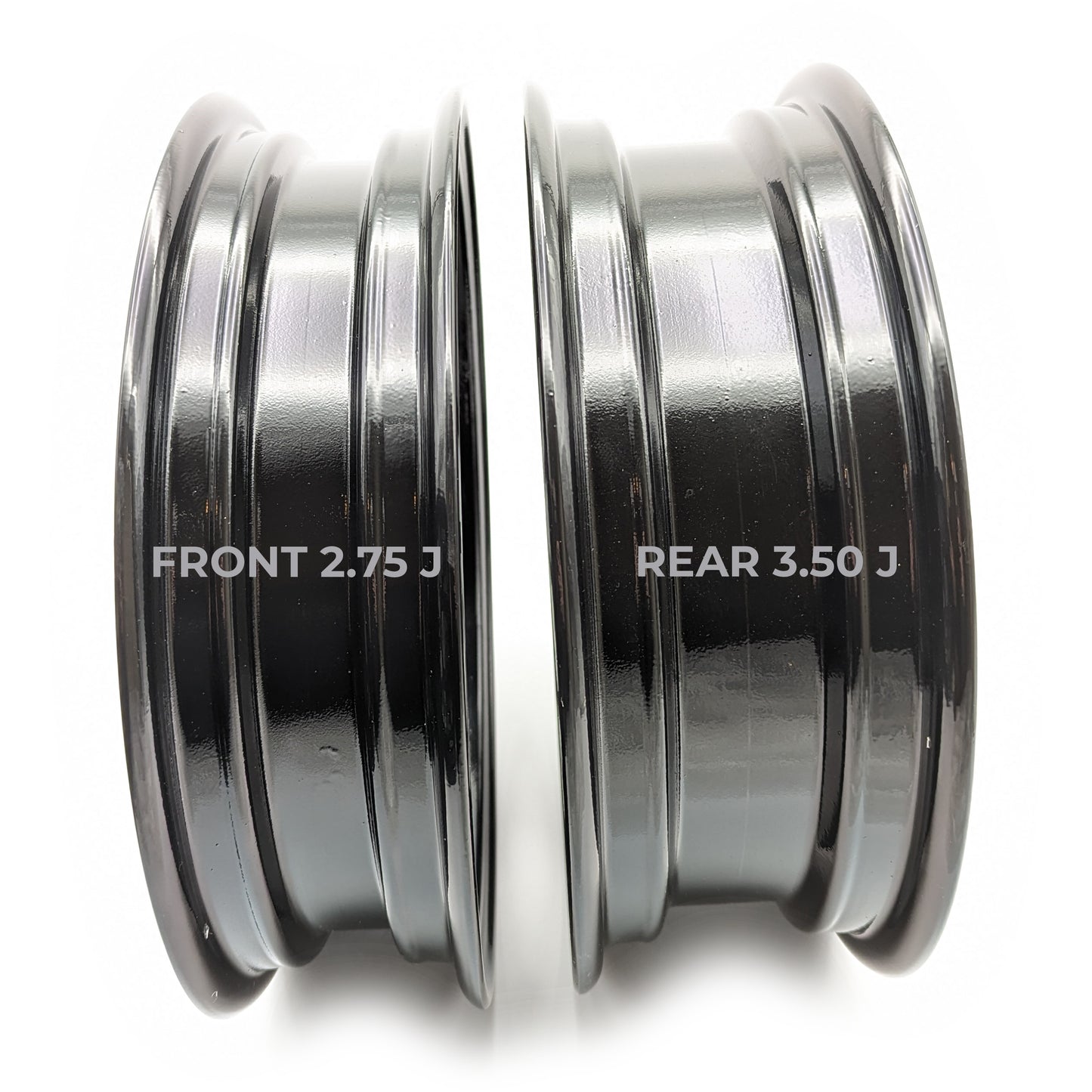

• 3.5" width rear, 2.75" width front staggered setup

• 0mm offset on one side +5mm offset on other side
• Tubeless

Why run a Staggered Wheel Set-up?

A staggered wheel setup on a motorcycle features a narrower front wheel and a wider rear wheel, enhancing both handling and stability. The lighter, slimmer front wheel—like our 2.75" front paired with a 3.5" rear, the same setup as the Honda Grom—allows for quicker, more responsive steering. Meanwhile, the wider rear wheel provides improved traction and stability, especially during acceleration and cornering. This combination strikes a perfect balance between agility and control, making for a more confident and enjoyable ride.

This is a custom part, please verify they will fit your bike before purchasing

Recommended tire size: 120/70-12,110/70-12 or 120/80-12

Valve stems sold separately
