360 Angle Adjustable Carburetor Intake Manifold - Medium Height 45mm/48mm Flange 26mm Opening

Designed for performance and fitment flexibility, this intake manifold provides proper clearance between the carburetor and frame, making it easier to dial in your setup on tight-fit builds, like ATC70, TRX70 and Z50

Specifications:

• Motor-side flange: 45 mm
• Carburetor-side flange: 48 mm
• Opening: 26 mm
• 360-degree mounting design: Allows the carb to be clocked for frame or tank clearance

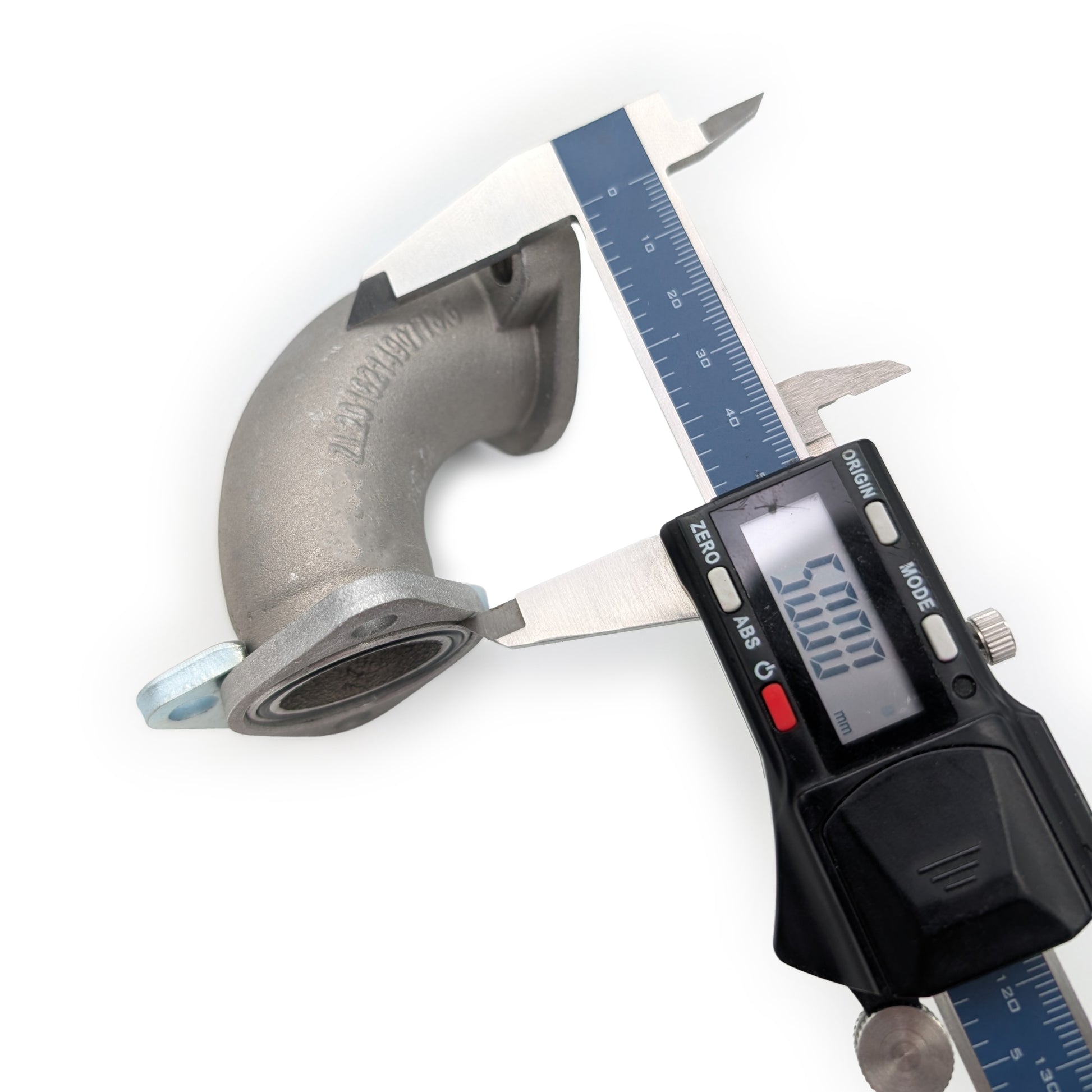

• Height from Base to Carb Bolt Center: Medium 50mm

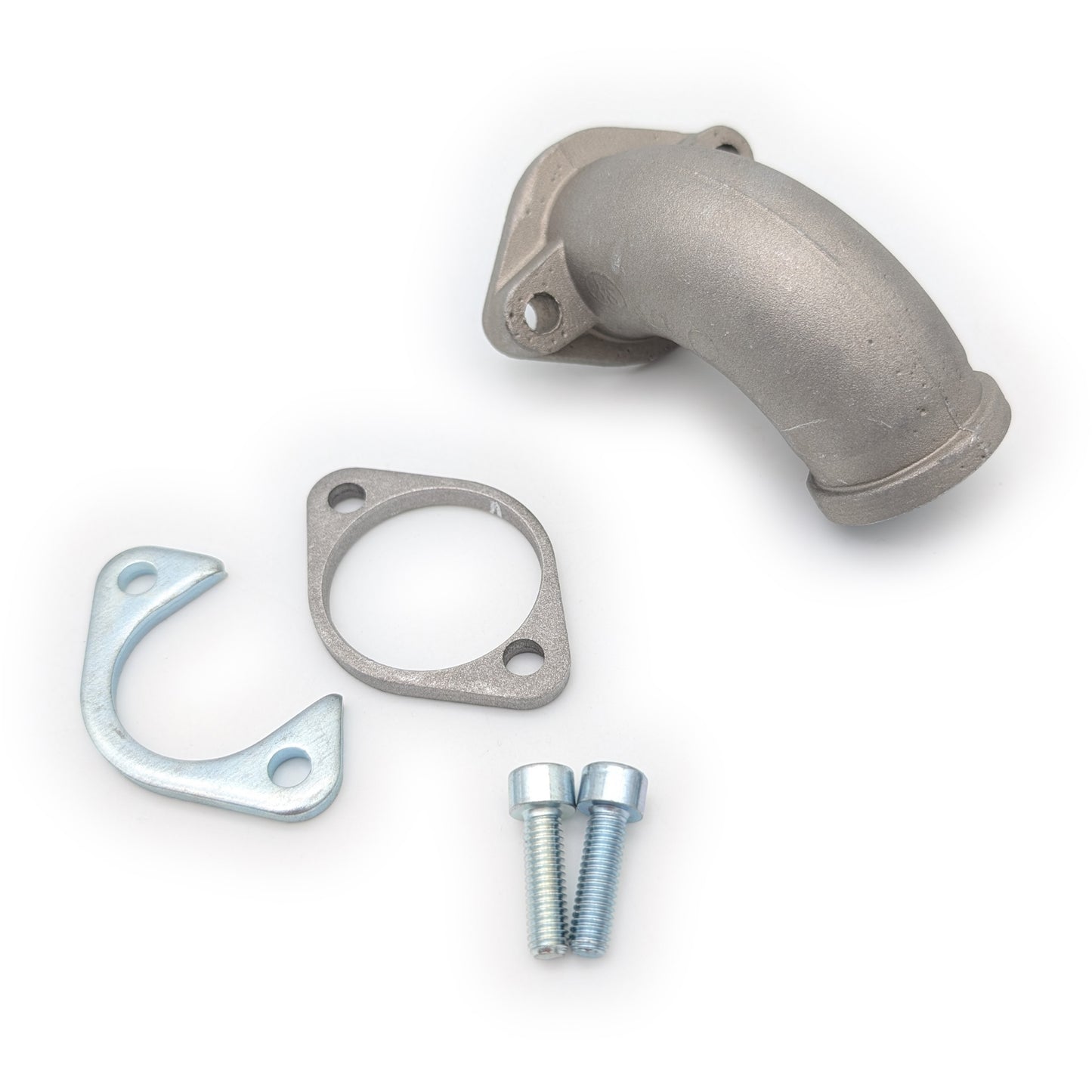

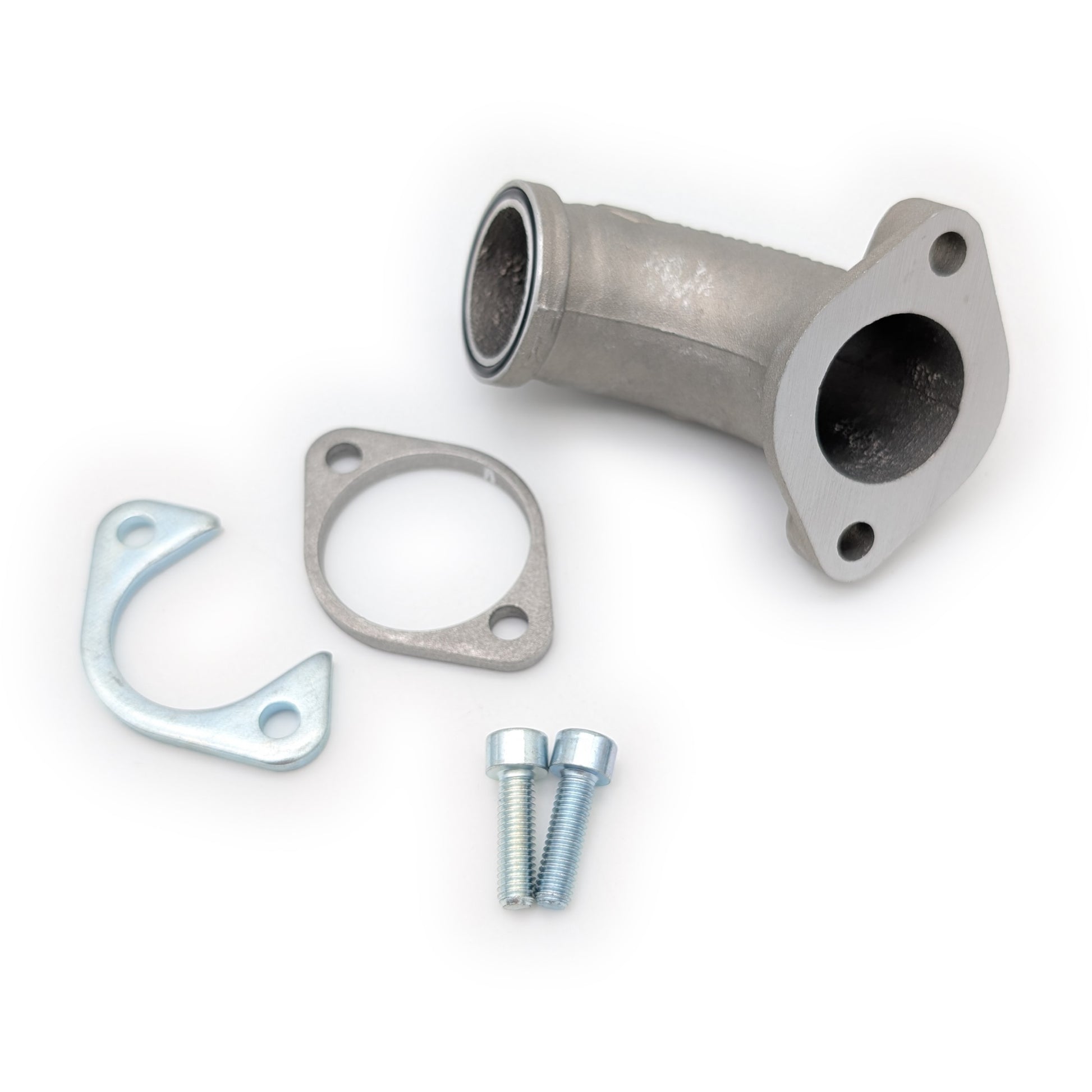

Includes:

• Intake, rotation plate and locking plate
• O-ring gasket for motor-side mounting
• Mounting bolts

⚠️ Note: The motor-side gasket is included. No gasket is included for the carburetor side. Please see the options below for compatible carb gaskets.

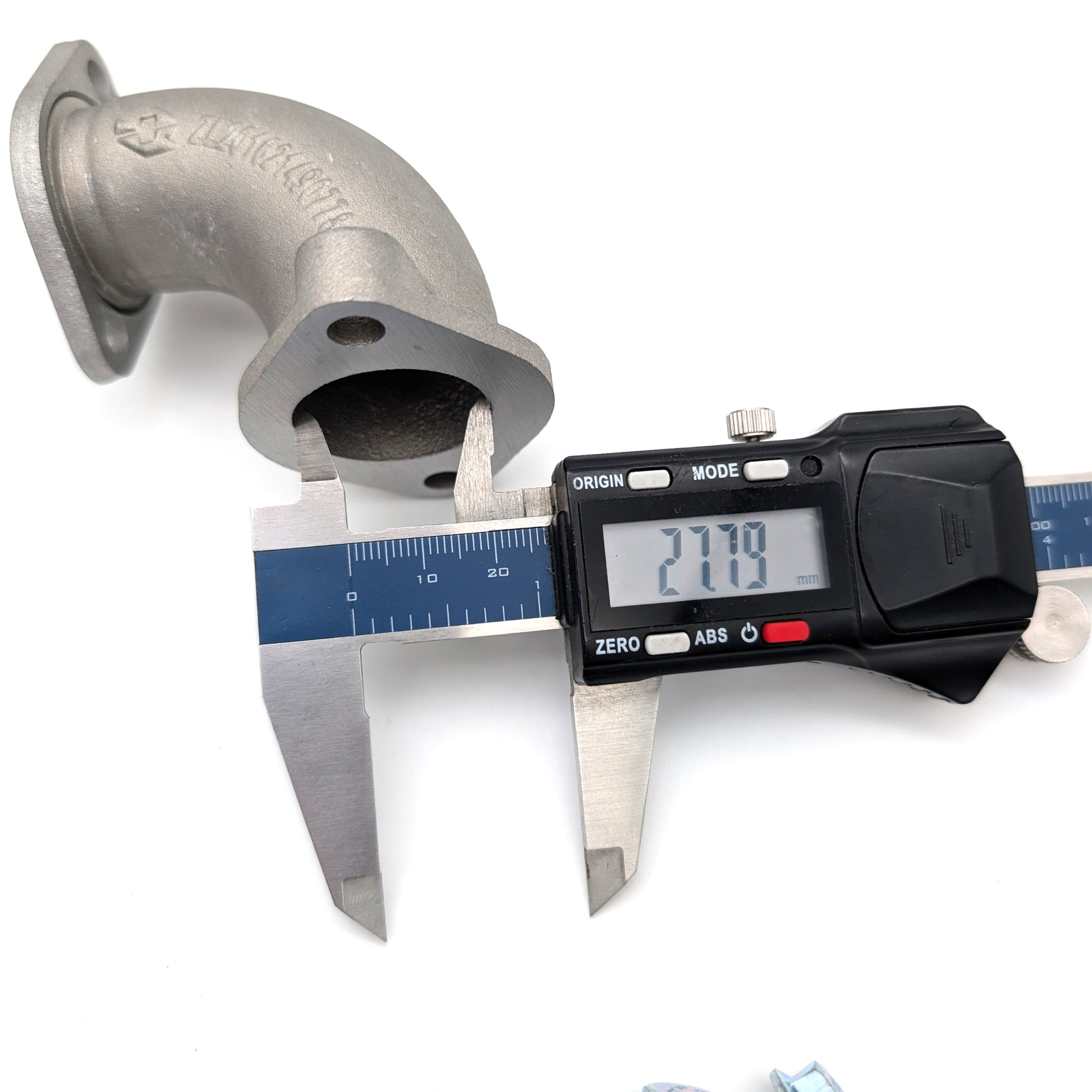

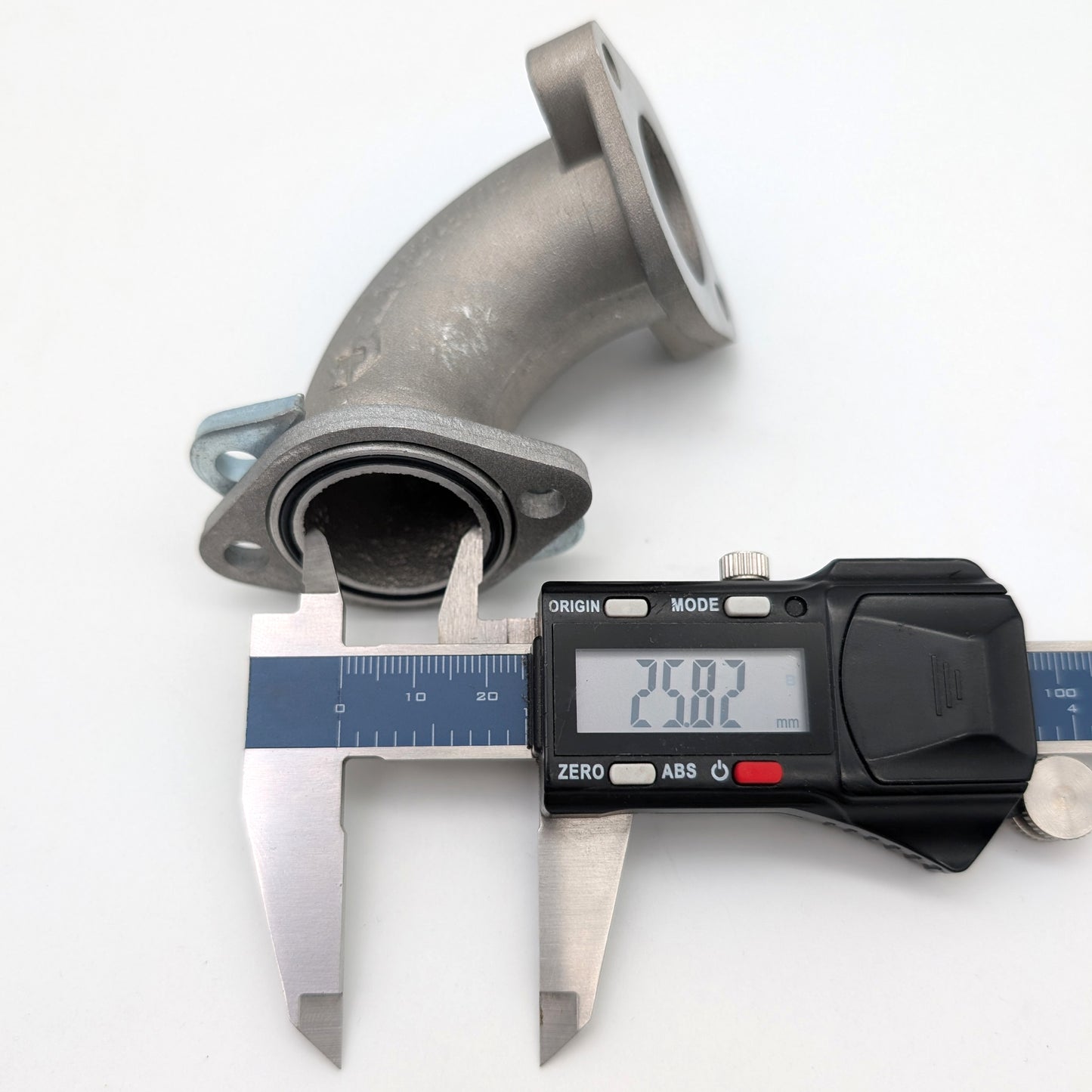

See photos for detailed dimensions and measurements.
