7/8" Handlebar Kill / Start Switch Assembly

7/8" Handlebar Kill / Start Switch Assembly

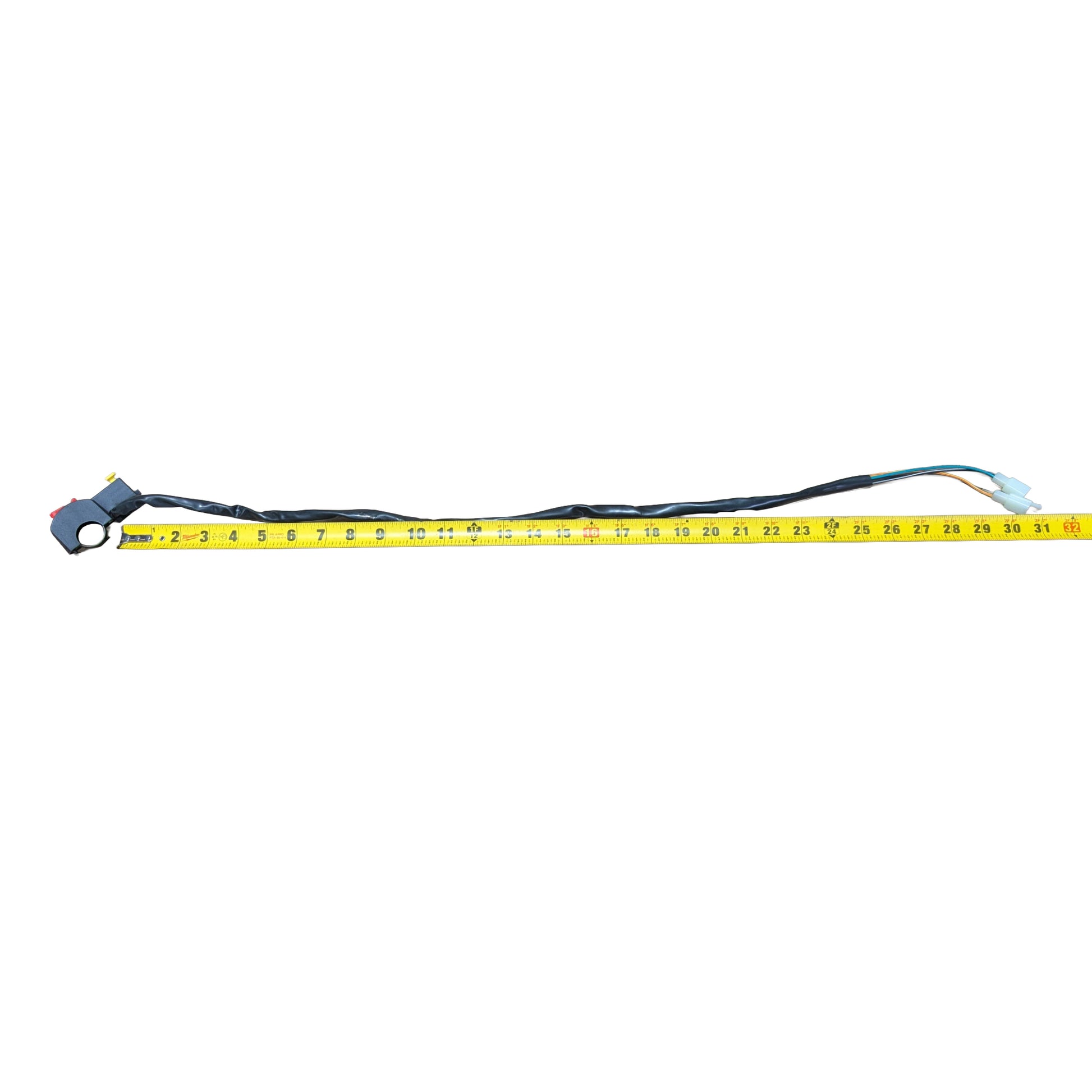

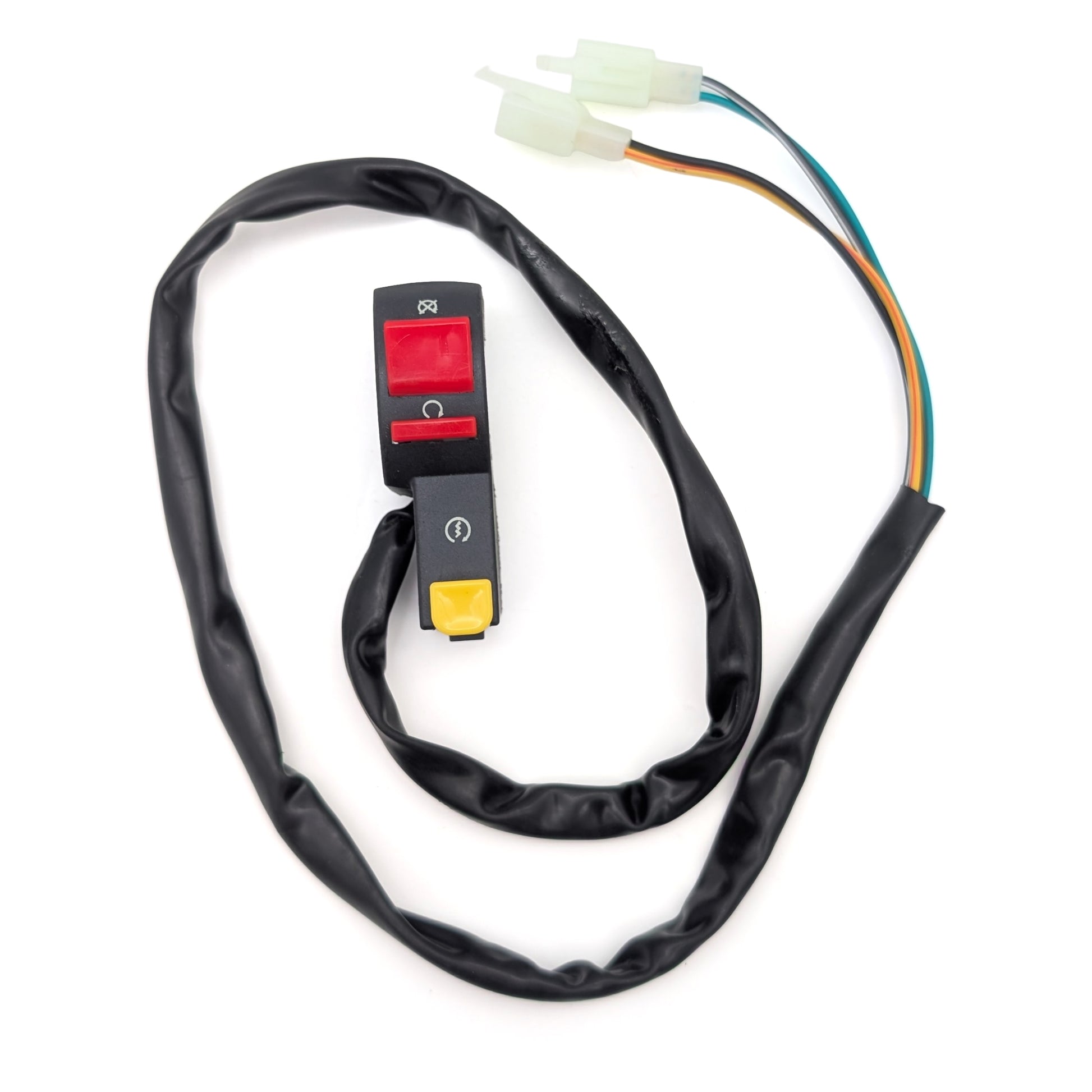

A compact, universal handlebar control setup featuring a run/kill toggle switch and momentary electric start button. Designed for clean installs on custom builds, engine swaps, and replacement setups using standard CDI wiring.

Wiring Overview

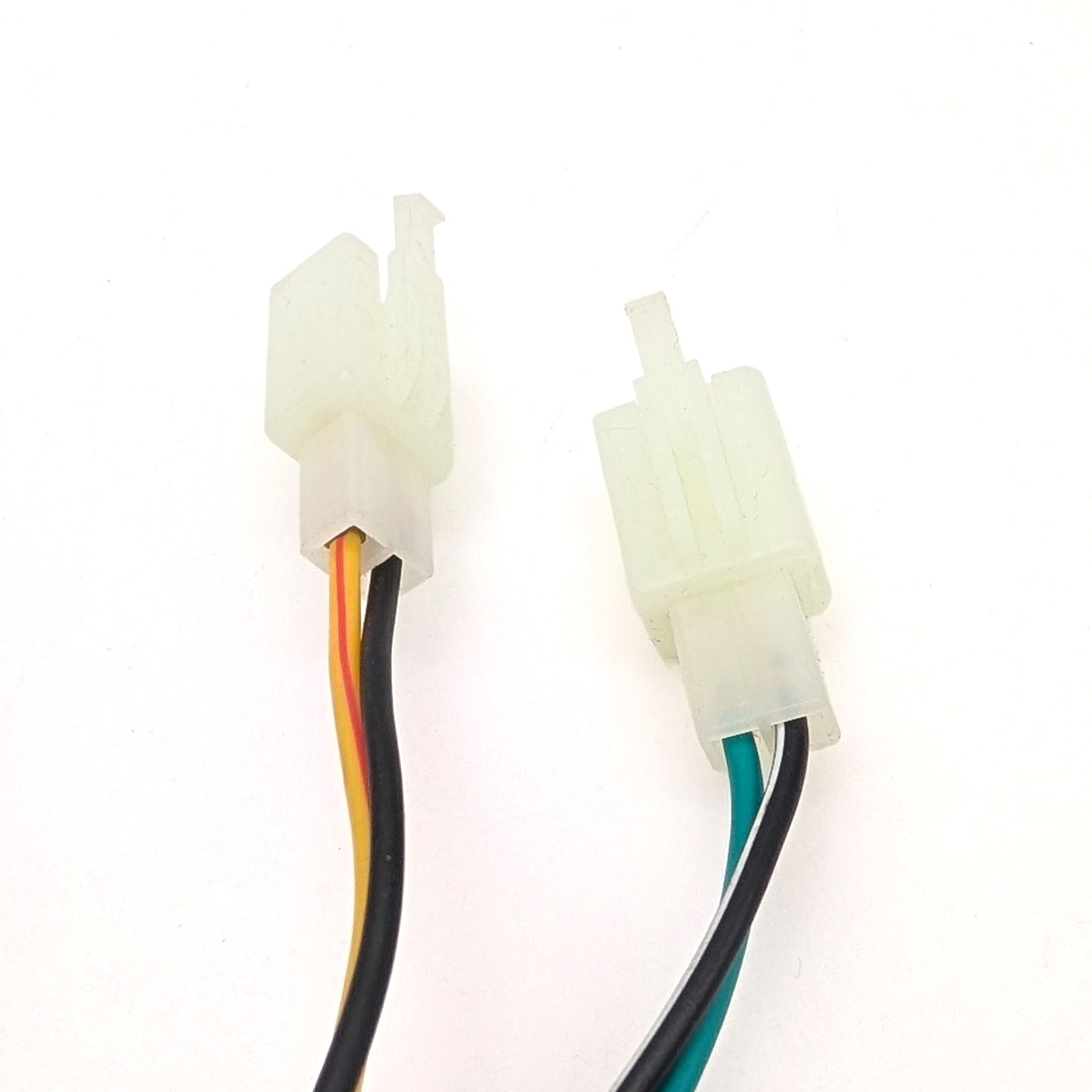

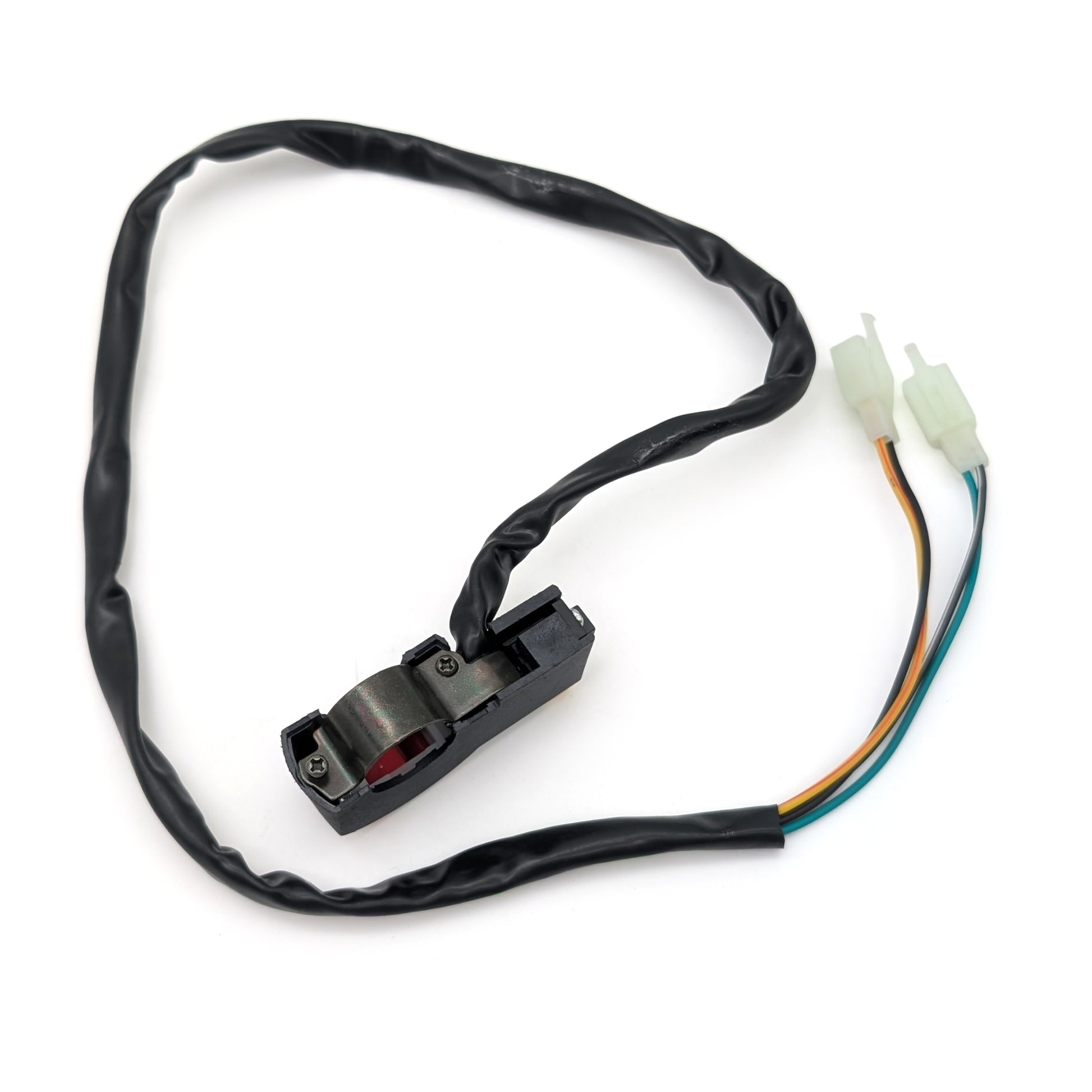

This switch uses two separate 2-pin male connectors, each dedicated to a specific function:

Start Button (Momentary)

• Wire Colors: Black + Yellow/Red
• Function: Sends a momentary signal to engage the starter solenoid
• Operation:
  Pressing the button connects Black ↔ Yellow/Red

Typical Use:

• Yellow/Red → Starter solenoid trigger wire
• Black → Ground or keyed power (depending on setup)

Kill / Run Toggle Switch

• Wire Colors: Green + Black/White
• Function: Grounds the ignition circuit to stop the engine
• Operation:
  • RUN position: Open circuit (engine runs)
  • OFF position: Connects Green ↔ Black/White (kills spark)

Typical Use:

• Black/White → CDI kill wire
• Green → Ground

Key Notes

• Standard wiring configuration used on most CDI-equipped pit bikes, ATVs, and mini bikes
• Plug-and-play compatible with many aftermarket harnesses
• Ideal for:
  • Electric start engines
  • No-lighting harnesses
  • Custom wiring setups
