Left Hand Control Switch Wiring (XR250 / XR650 Style)

Left Hand Control Switch Wiring (XR250 / XR650 Style)
Functions: Headlight Hi/Lo, Turn Signals (L/R), Horn

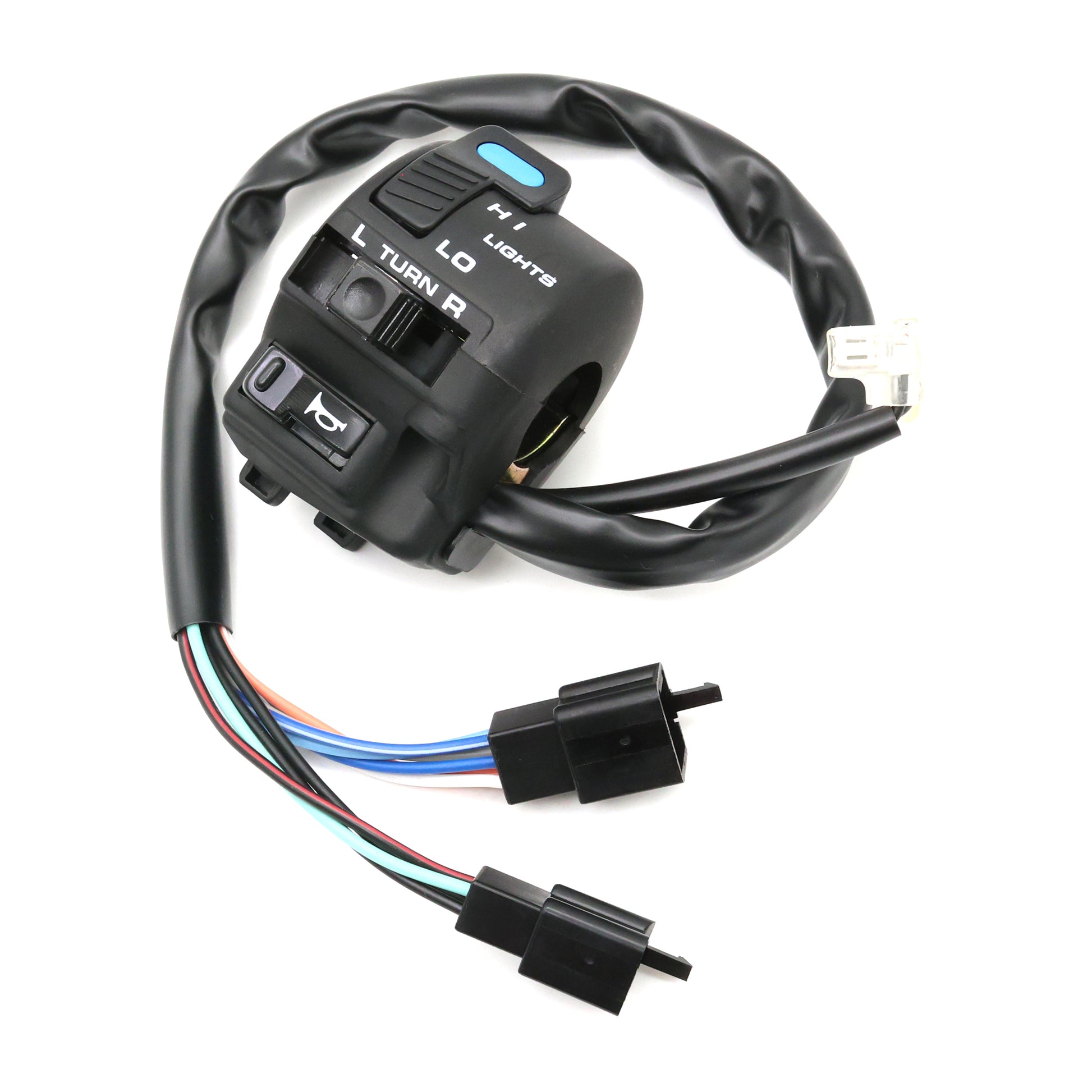

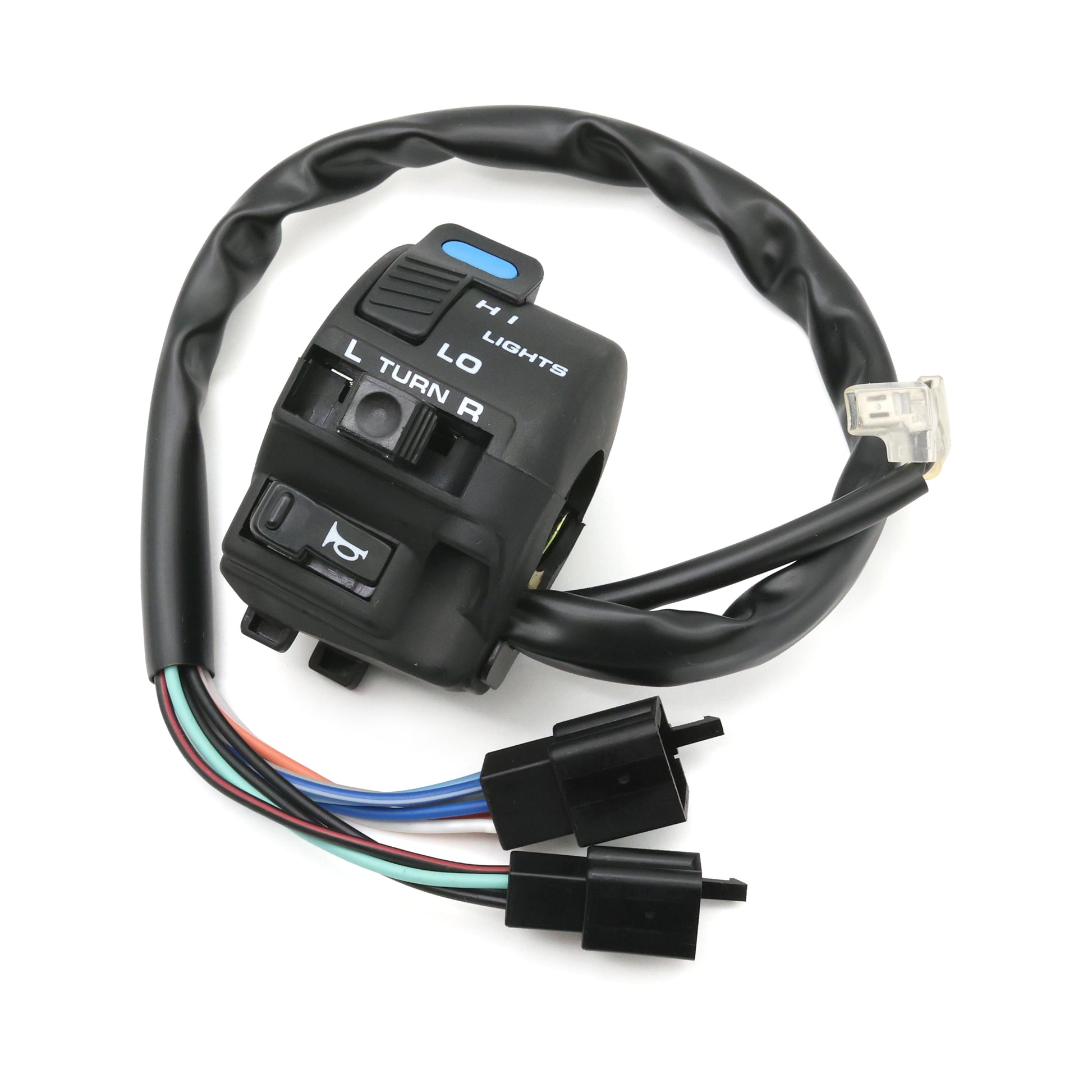

This XR-style left hand control is a simple, reliable multi-function switch designed for custom harnesses and 12V conversions. It uses Honda-style wire colors for straightforward integration into most builds.

Built with quality in mind, this switch features strong internal springs that provide a crisp, satisfying click with every use. The housing is made from a durable composite plastic designed to handle real-world abuse, and the turn signal switch features a press-to-cancel function for a true OEM-style feel. Overall, this is a solid, high-quality control setup that feels right at home on any serious build.

Wire Breakdown

Headlight (Hi/Lo)
Blue/White → Headlight power input
White → Low beam output
Dark Blue → High beam output

Turn Signals
Gray → Turn signal power input (from flasher relay)
Orange/White → Left turn signal output
Light Blue → Right turn signal output

Horn
Black/Red → +12V input
Light Green → Output to horn (ground trigger)

Jumpers
(2) Black wires → Internal jumper wires
These can be removed if your wiring setup does not require them.

Notes
Designed for 12V systems
Works with most Honda-style wiring harnesses and custom builds
Turn signal circuit requires a flasher relay
Horn circuit is ground-triggered (Honda style)
Always verify wiring before applying power
