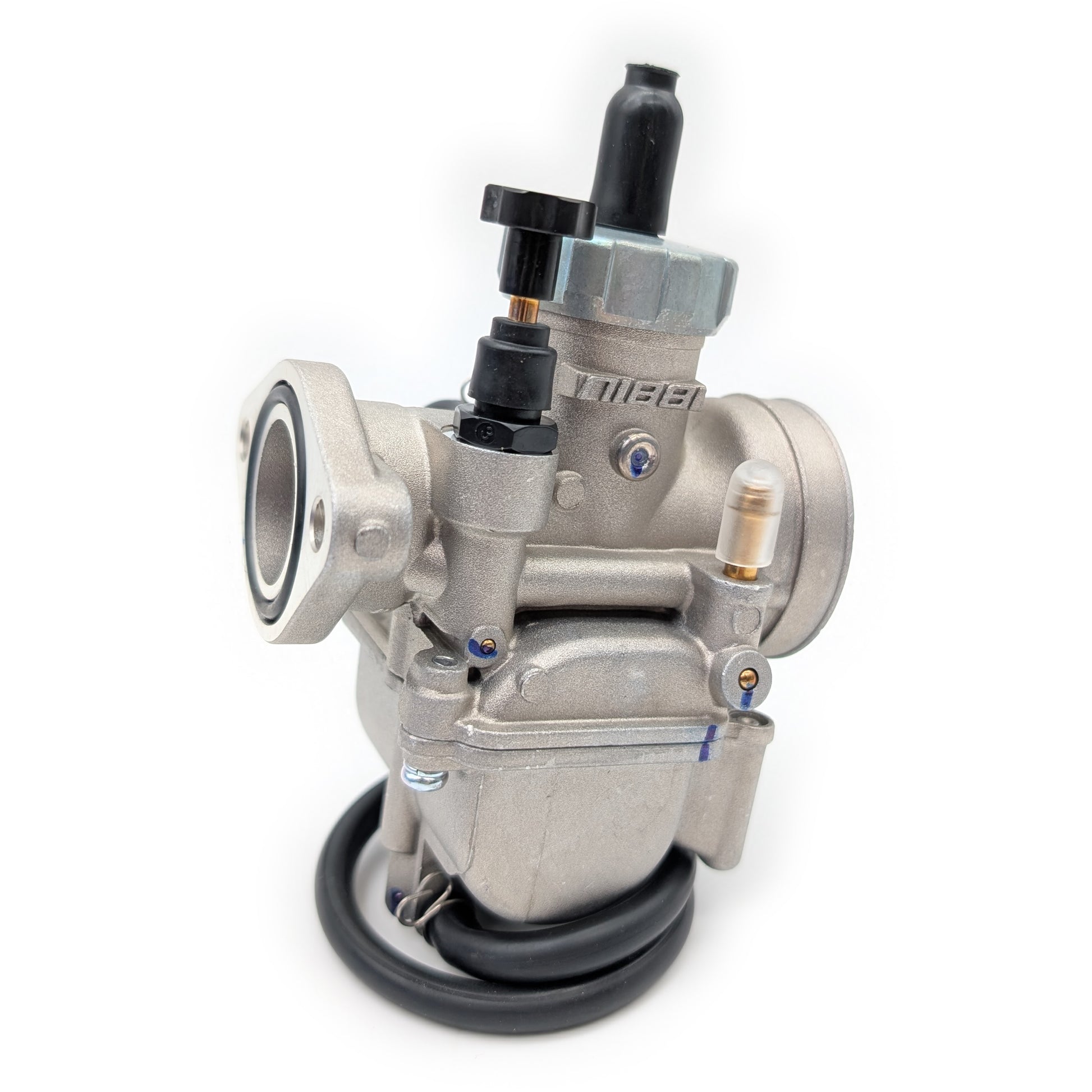

Nibbi PE22FL Flanged 22mm Carburetor (Silver)

Crisp throttle, easy tuning, and a clean OEM-style flanged mount. This silver-finish NIBBI PE22FL is a great match for 110–130cc horizontal engines when you want smooth street manners with a little punch up top. Includes extra jets to dial it in.

Key Features

• Flanged mount (48 mm bolt-center) – bolts to flanged intake manifolds; no spigot adapter needed
• 22 mm bore – responsive midrange with strong rideability
• Aluminum-alloy body – lightweight, durable
• Silver finish – clean, factory-look aesthetic
• Jet kit included – quick baseline tuning for your setup

Specifications

• Color: Silver
• Material: Aluminum alloy
• Flange Bolt-Center: 48 mm
• Spigot (Rear Inlet): 22 mm ID
• Intake (Front Outlet): 46 mm OD
• Height: 141 mm
• Width: 88 mm
• Recommended Displacement: 110–130 cc horizontal engines

What’s Included

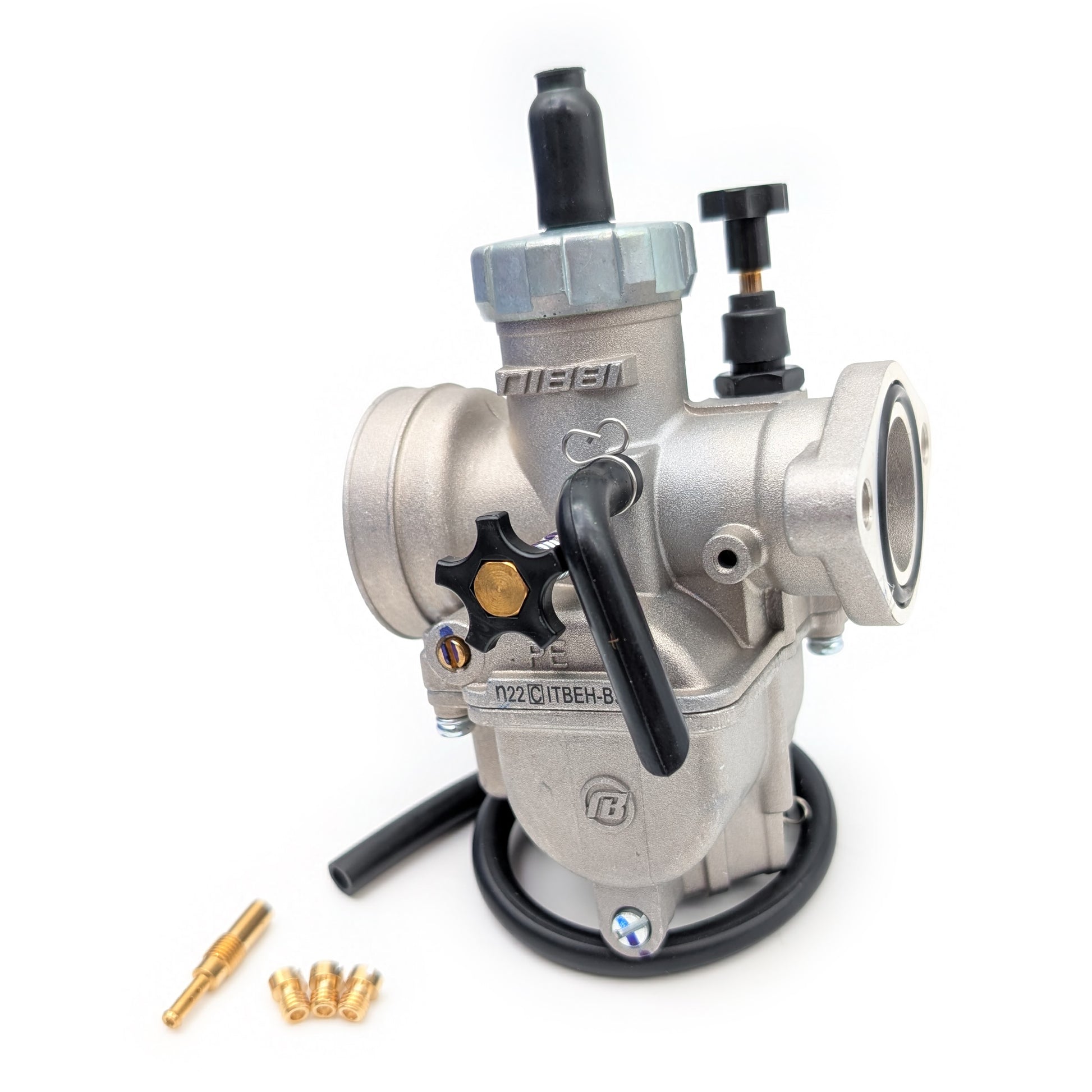

• PE22FL Carburetor ×1
• Main Jets: #92 ×1, #95 ×1, #100 ×1
• Pilot Jet: #30 ×1
• Stickers ×2
• Instructions ×1
• Packaging Box ×1

Fitment & Notes

• Mounting: Requires a flanged intake manifold with 48 mm bolt-center.
• Cable: Use a compatible throttle cable (ensure proper free play and slide return).
• Tuning: Start rich and work down—use included jets as a baseline and fine-tune for your altitude, exhaust, and airbox.
• Examples: Common on Honda-style horizontal engines (e.g., CT70/ATC70/Z50/Dax/pit-bike platforms) when equipped with the correct flanged manifold.

Pro Tip

For best results, confirm manifold gasket condition, verify float height, and synchronize idle mixture/idle speed after warm-up.
