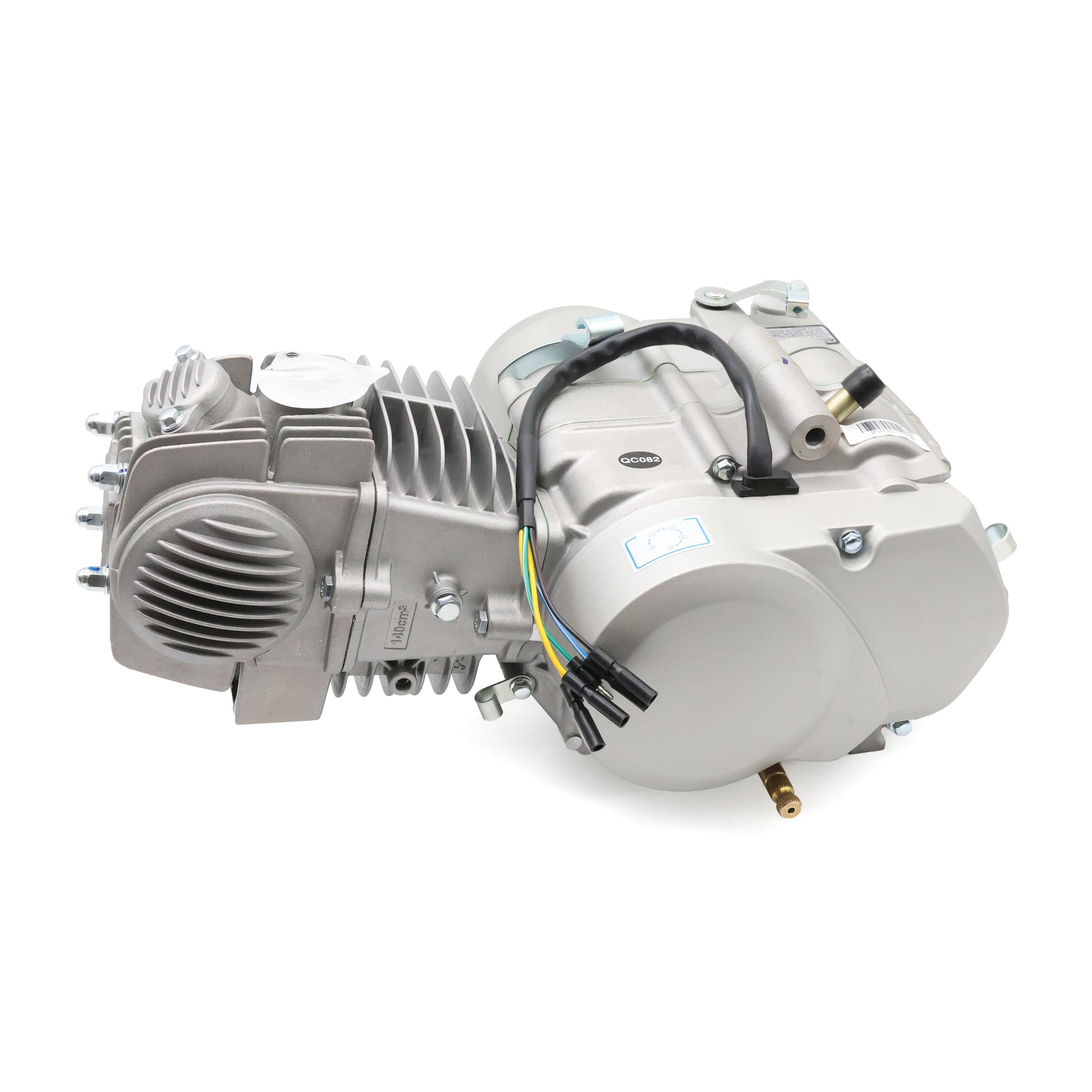

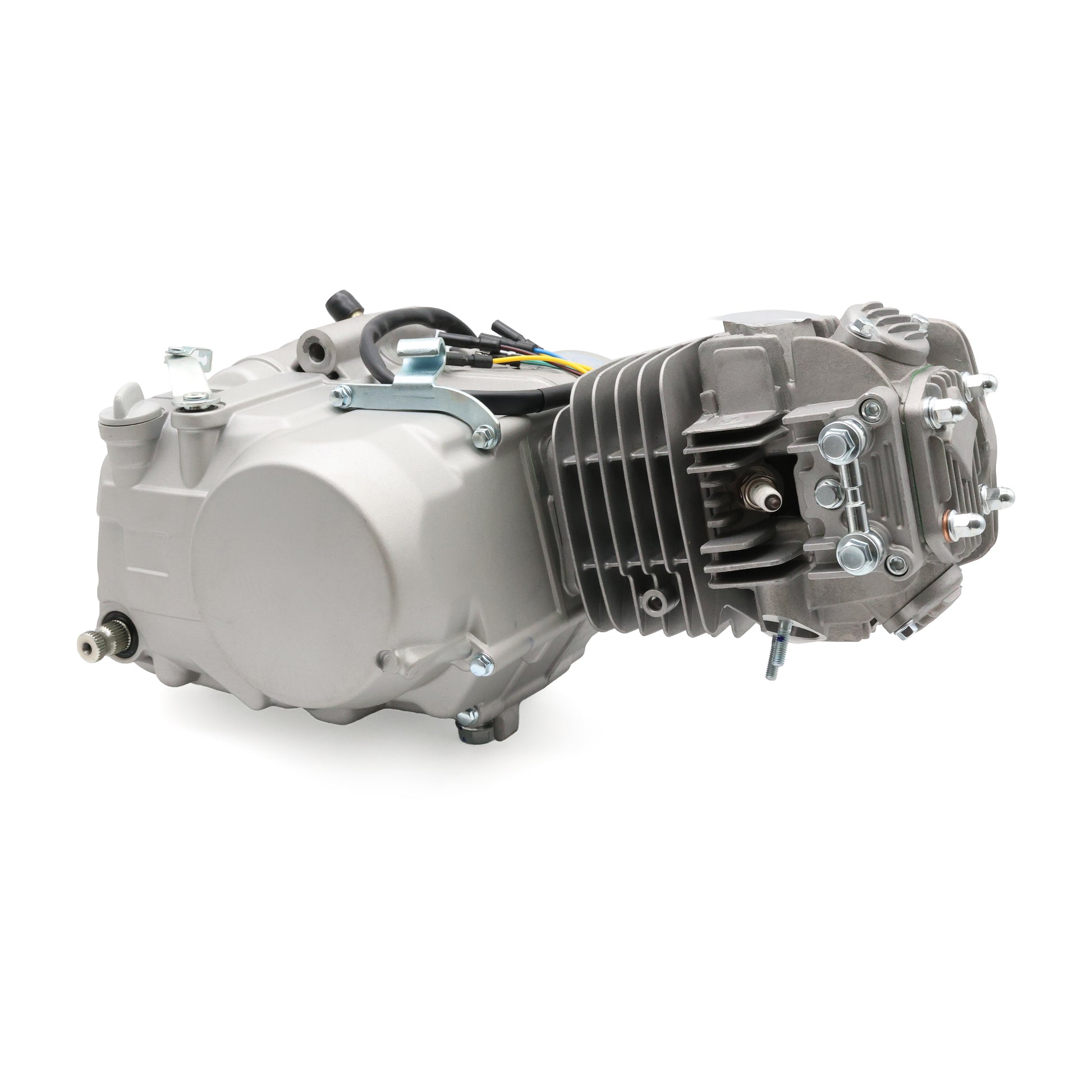

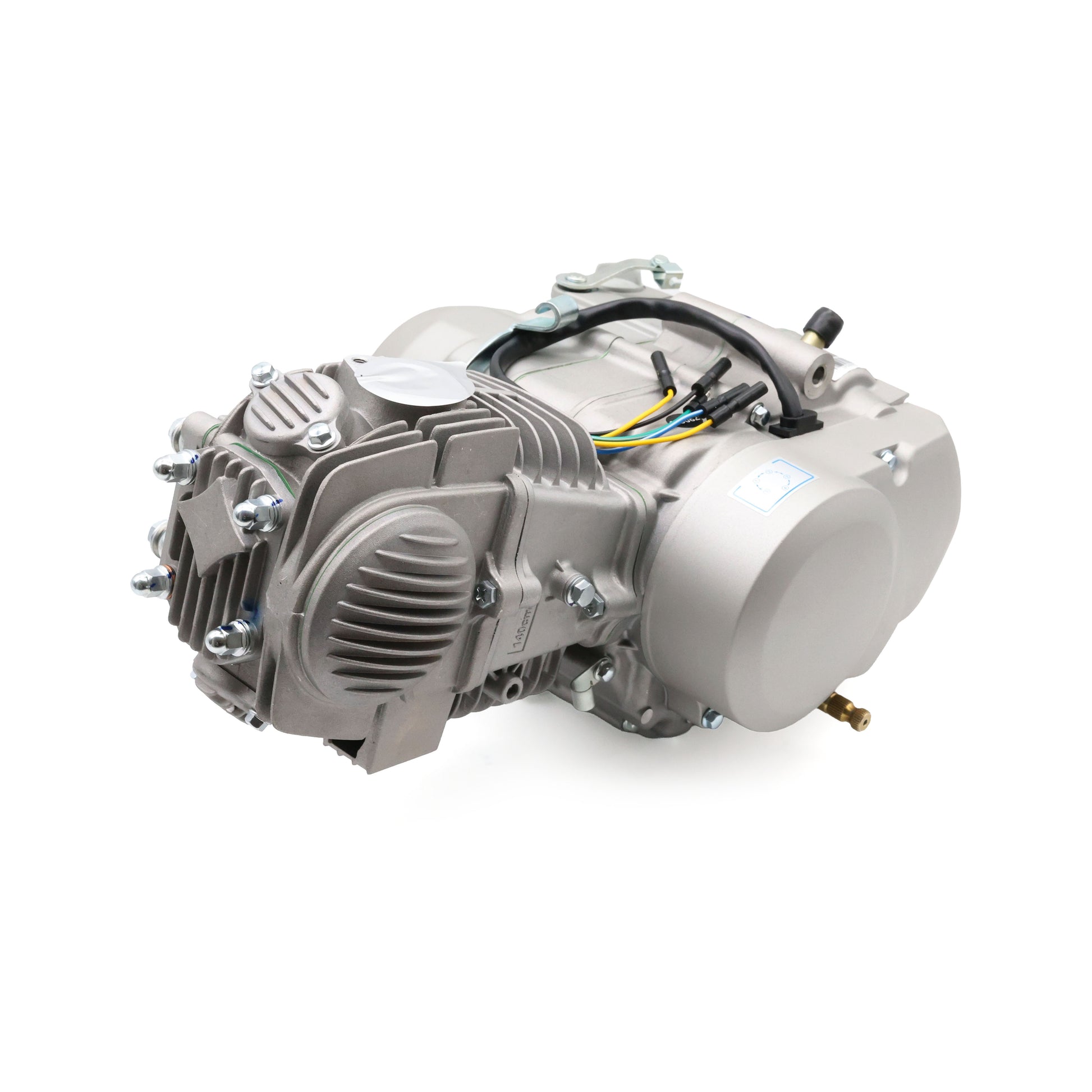

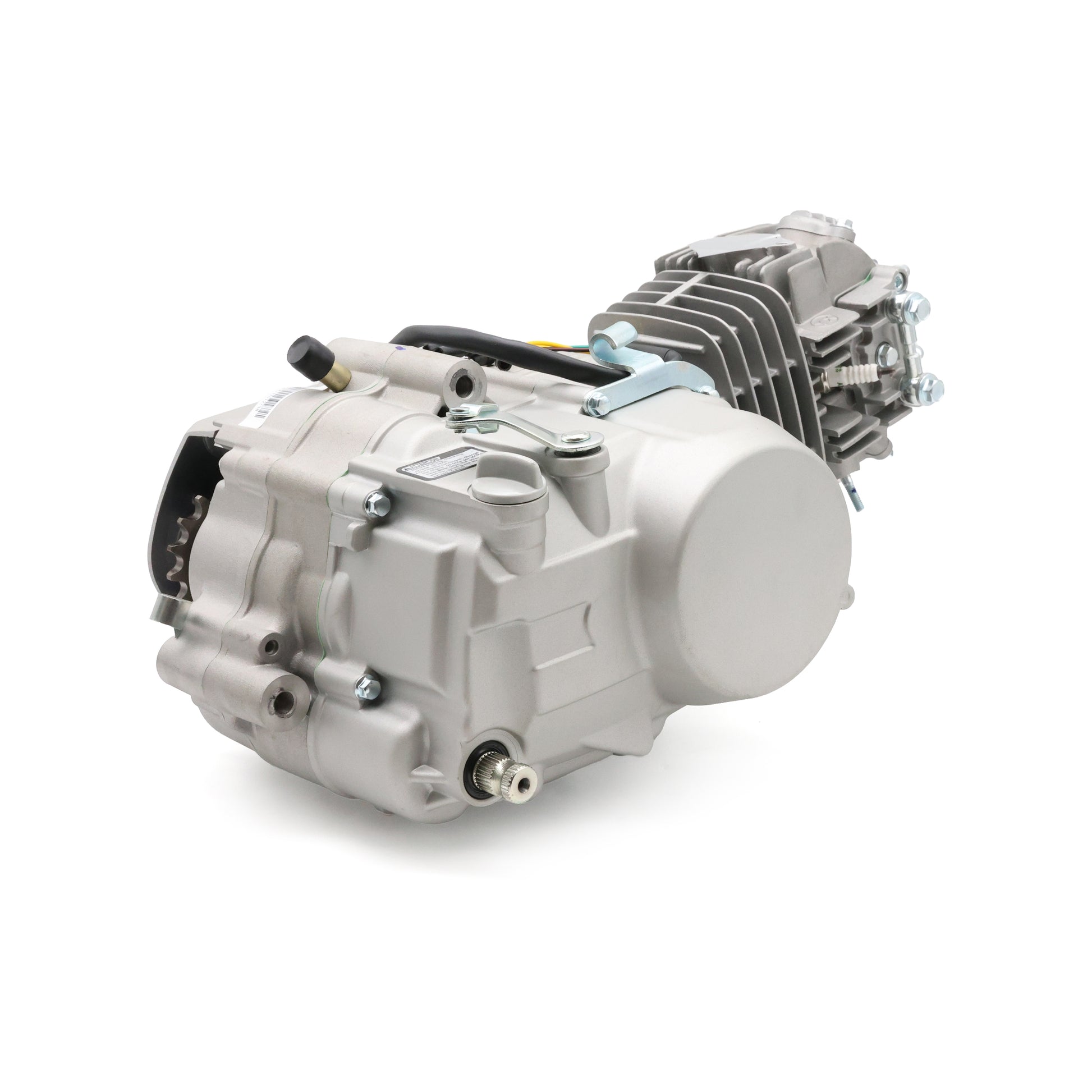

Silver YX140 140cc Kick Start Clutch (Motor Only)
Silver YX140 140cc Kick Start Clutch (Motor Only)
Special Offers
Couldn't load pickup availability
The YX140 has earned its reputation as one of the most dependable horizontal pit bike engines ever built. Whether you're upgrading a Honda CT70, Z50, ATC70, SL70, XL70, or another Honda mini, the YX140 delivers a huge jump in performance while maintaining the reliability these engines are known for.
With a 56mm bore, 57mm stroke, manual 4 speed transmission, and oil cooled design, the YX140 produces approximately 13.5 horsepower—more than double the output of a stock 70cc Honda engine. The broad torque curve makes it easy to ride around town, climb hills, and comfortably cruise at speeds of 55 MPH with the proper gearing.
The engine features a proven wet multi-plate manual clutch, CDI ignition, full wave stator lighting output suitable for full DC lighting (LED ready), and uses a common 17mm output shaft with an included 17-tooth 420 sprocket. Replacement parts, performance upgrades, and service components are widely available, making the YX140 one of the easiest engines to own and maintain.
Why Buy Your YX140 from Bart Moto Co?
When you purchase your engine from BMC, you're buying from a team that installs, tunes, and builds Honda Mini bikes every day. We don't just sell these engines—we use them ourselves and have years of hands-on experience with Honda Mini engine swaps.
If you need guidance on fitment, wiring, gearing, or selecting compatible parts, you're buying from a company that understands these engines and the bikes they go into.
Every engine ships from our warehouse and is backed by our First Fire & Function Guarantee, along with knowledgeable technical support when you need it.
Engine Specifications
| Specification | Details |
|---|---|
| Engine Type | 4 Stroke, Single Cylinder, 2 Valve, Oil Cooled Horizontal Engine |
| Displacement | 140cc |
| Horsepower | Approximately 13.5 HP |
| Compression Ratio | 8.8:1 |
| Bore x Stroke | 56mm x 57mm |
| Fuel Requirement | 91 Octane or Higher |
| Recommended Oil | 10W-40 Motorcycle Oil |
| Starting System | Kick Start (14mm Shaft) |
| Ignition | CDI |
| Lighting Output | Yes (Full Wave 12V Output) |
| Clutch | Manual Wet Multi-Plate |
| Transmission | 4 Speed Manual |
| Shift Pattern | All Up (N-1-2-3-4) |
| Countershaft Sprocket | 17 Tooth, 420 Chain |

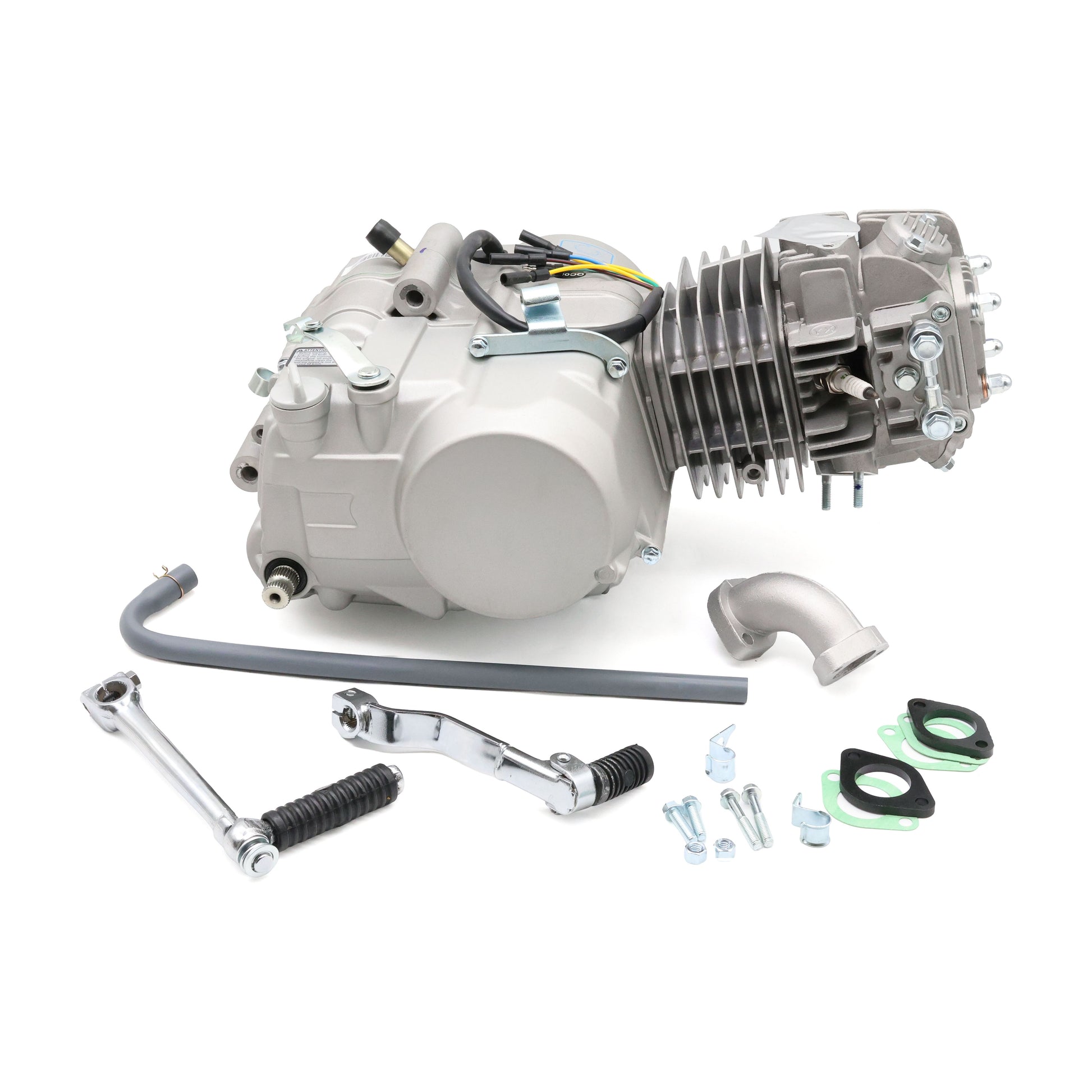

Included with Engine
- 17T 420 Front Sprocket
- Sprocket Cover
- Intake Manifold
- Intake Gaskets
- Intake Mounting Bolts
- Breather Tube
- Shift Lever
- Kick Start Lever
Common Applications
- Honda CT70
- Honda Z50
- Honda ATC70
- Honda SL70
- Honda XL70
- Honda CRF50 (with appropriate mounting components)
- Many Honda-style horizontal engine conversions
Looking for everything needed to complete your swap? Our YX140 Full Kit Bundle includes the engine along with the carburetor, wiring harness, throttle, foot pegs, and other recommended components to simplify your build.
